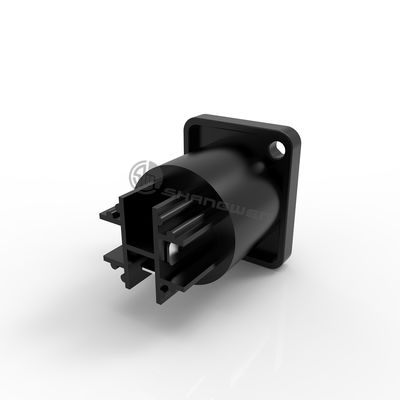

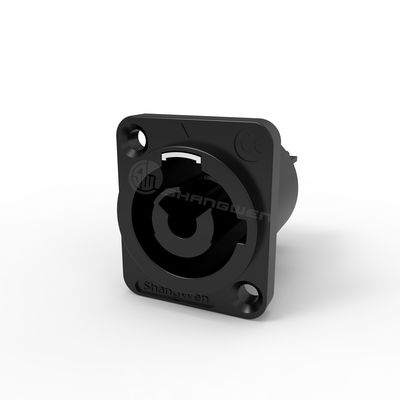

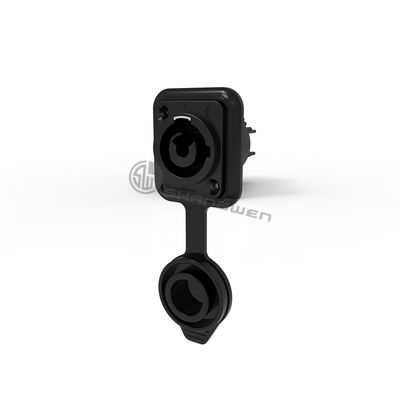

250v 20A IP65 Black Powercon Chassis Connector socket Waterproof For LED Screen
| Place of Origin | China |
|---|---|
| Brand Name | Shang Wen |
| Certification | CQC Rohs UL CE |
| Model Number | SW3MPB1-W |
| Minimum Order Quantity | 100pcs |
| Price | Negotiable |
| Packaging Details | Internal blister box 23x23cm External carton 51x26x34cm |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100000+pcs+per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Powercon Chassis Connector | Gender | Male |
|---|---|---|---|
| Type Of Terminals | 3/16" Flat Tab | Connecting Mode | Fast Rotating Connection |
| Color | Black/Power-out | Shell Material | Polyamide |
| Application | For Power Connection | Conductor Material | Cu Alloy |
| IP Grade | IP65 | ||
| Highlight | Black Powercon Chassis Connector,Powercon Chassis Connector,PA6 Waterproof Electrical Connector |
||
Product Description
IP65 Waterproof Powercon Chassis 3 Conductor 20A 250V Power-Out 3/16" Flat Tab Terminals Black Color For Led Screen
SW3MPB1-W is widely used in outdoor rental LED display power connection.
The shell part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
The contact part is made of beryllium copper material imported from the US and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
Product features
☑ Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating
☑ Connect reliably
☑ Small size of product
☑Waterproof grade IP65
☑ Secure,quick, simple locking system
☑ High current capacity,rated at 20A/250V AC
☑ Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground
Technical parameters
-Electrical parameters
| Contacts No. | 3 |
| Rated current | 20A |
| Rated voltage | 250V AC |
| Contact resistance | ≤5mΩ |
| Dielectric strength |
4000V DC |
| Insulation resistance |
＞1000MΩ |
-Mechanical parameters
| Service life | ＞1000 times |
| Power line | 2.5mm²(8mm-12mm) |
| Wire stripping length | 7-8mm |
| Type of terminals | 3/16'' flat tab/solder termination |
Material and environmental parameters
| Shell | PA |
| Conductor | Cu alloy |
| Conductor surface | Ag |
| Flame-retardant grade | UL94-V0 |
| Temperature range | -30°C~80°C |
| IP grade | IP65 |
