Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Quick, Simple Self Locking System | Name | 2 Pin IP67 Power Connector |
|---|---|---|---|
| Application | Industrial | Industrial Electronics | Accessories |
| Multiple Cores | 2,3,4,5,6,9,3+9 Pin Support | Gender | Male |
| Type | M19 Screw Tooth Series | ||
| Highlight | Small IP67 Power Connector,IP67 Power Connector FCC,2 Pin Power Connector Industrial |
||
Product Description

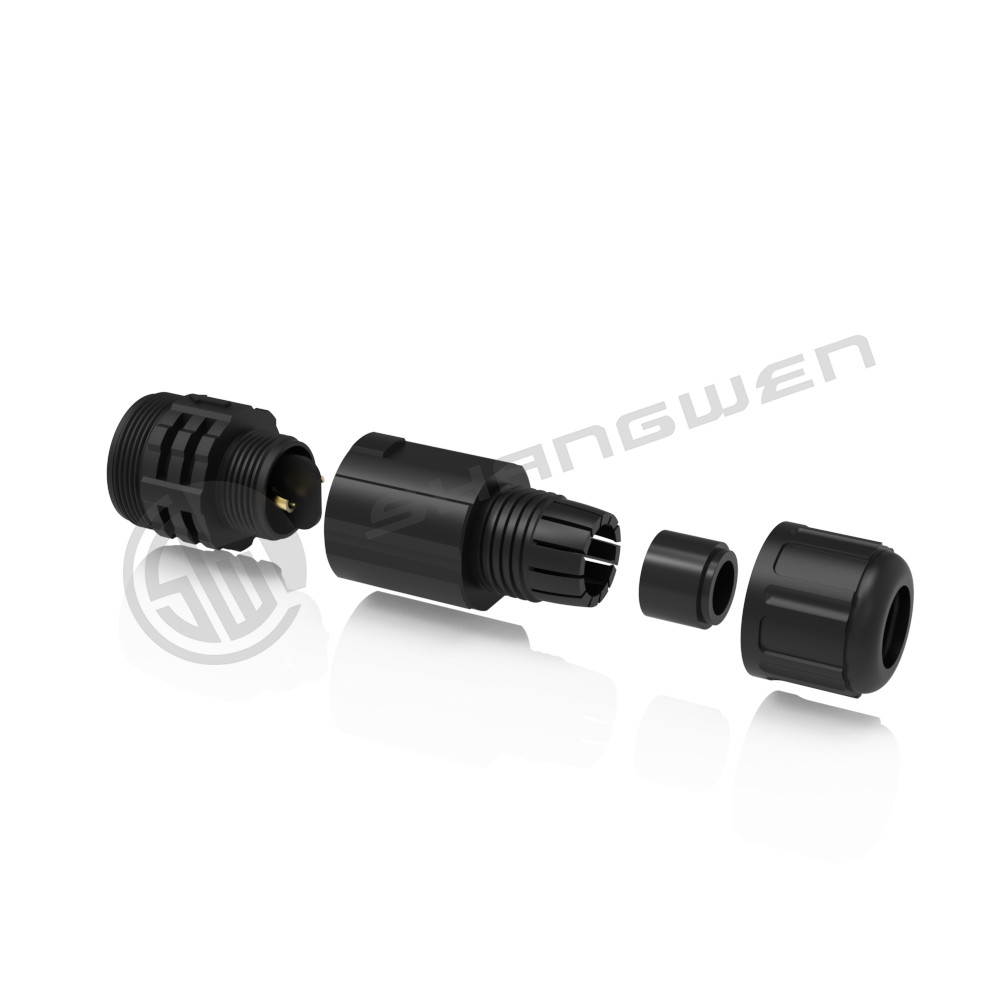

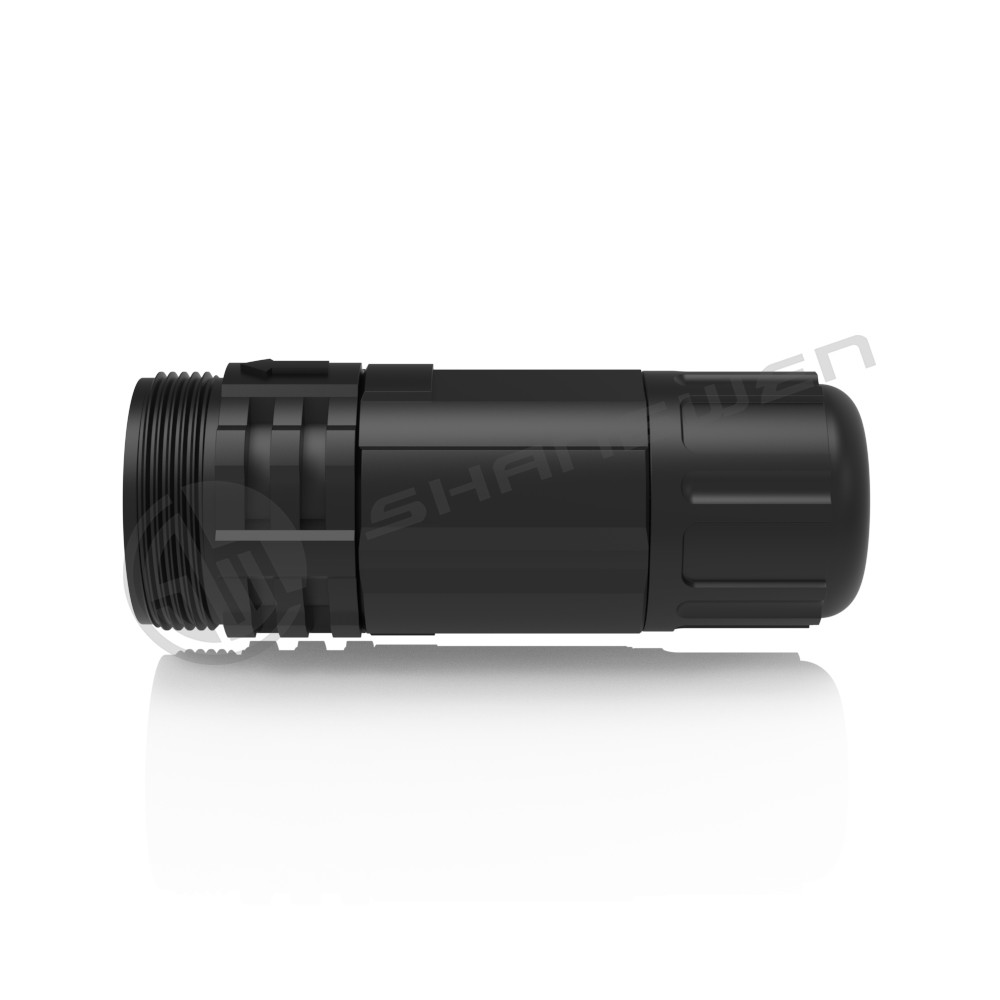

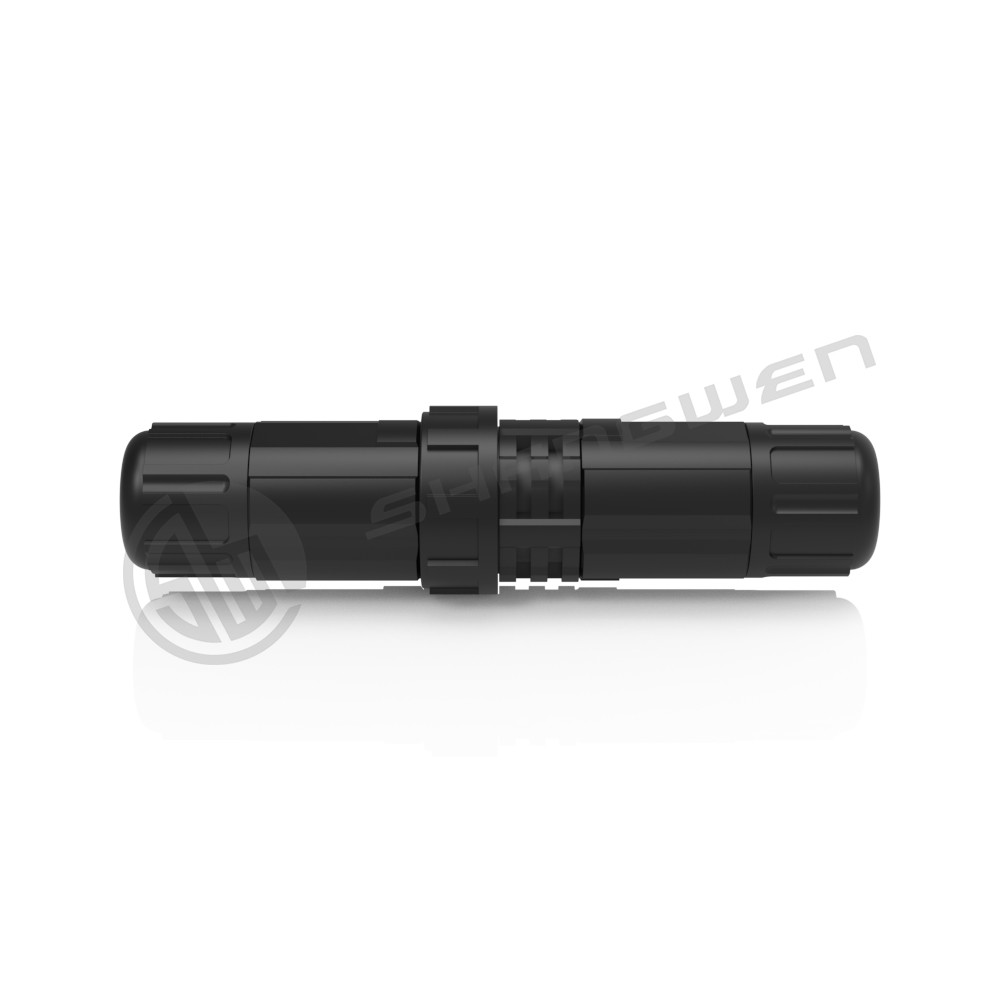

New Industrial Waterproof Screw Tooth Series Plastic Wrap Male Plug M19 Connector
Products Description
SW19 Screw tooth series-2 Pin connector
M19 series is an industrial connector, which includes male plug, female plug and male socket.

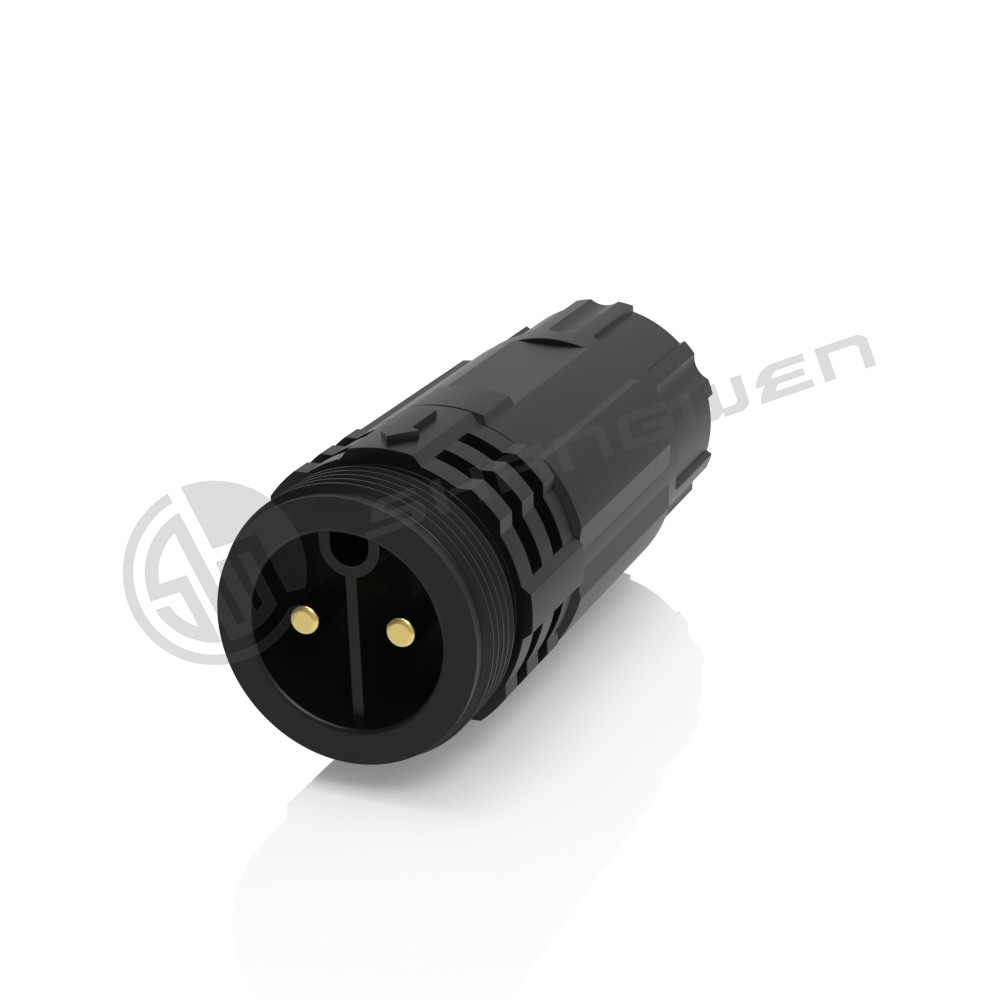

Model : SW19-2JL-T (2 pin male plug)
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑ Contact pin: Screw cable,soldering cup and crimp available
☑ Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board
☑ Black,blue,white and yellow color supported
☑ Different cable length could be customized
☑Quick, simple self locking system
☑Connect reliably
☑Waterproof rating IP67
☑ Advanced structure: Self-locking
1. Electrical parameters
|
Contacts NO.
|
2 pin
|
|
Rated current
|
20A
|
|
Rated voltage
|
300V AC
|
|
Withstand voltage
|
1500V
|
|
Insulation resistance
|
≥100mΩ
|
|
Contact resistance
|
≤10mΩ
|
2. Mechanical parameters
|
Service life
|
＞1000 times
|
|
Power line
|
Φ4.5mm-Φ11mm
|
|
Type of terminals
|
Screw terminal and soldering terminal available
|
3. Material and environmental parameters
|
Shell
|
High performance engineering plastics
|
|
Contacts
|
Copper alloy
|
|
Contact diameter
|
Φ2.4mm
|
|
Protection degree
|
IP67
|
|
Flame-retardant grade
|
UL94-V0
|
|
Temperature range
|
-40℃~105℃
|
4.Size reference (unit /mm)
5.Operating reference
FAQ
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
