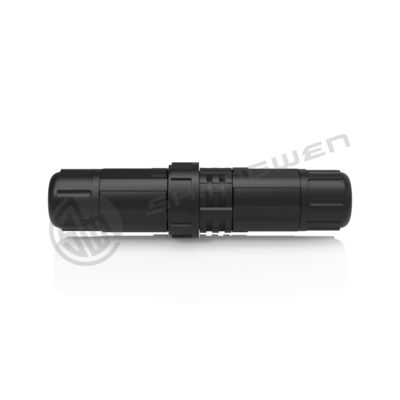

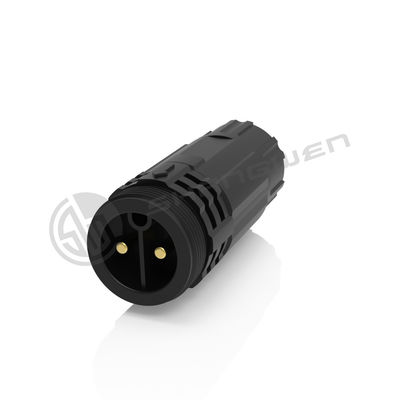

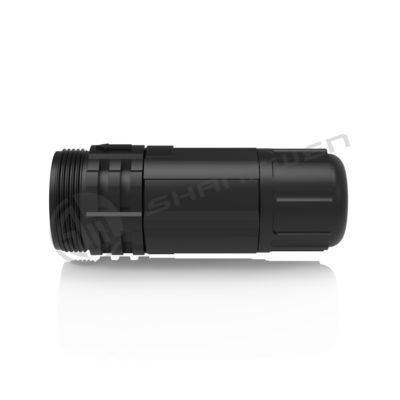

M19 Ip67 IP67 Power Connectors Waterproof Plug 2 Pin Sales Screw Terminal Shape UL

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW19-2JL-T
Minimum Order Quantity	2 pieces
Price	$1.58 - $2.20/pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)
Supply Ability	1000000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Quick, Simple Self Locking System	Name	Ip67 IP67 Power Connectors
Type	M19 Screw Tooth Series	Gender	Male
Industrial Electronics	Accessories	Port	Shenzhen
Multiple Cores	2,3,4,5,6,9,3+9 Pin Support	Application	Industrial
Highlight	UL IP67 Power Connector , IP67 Power Connector Plug , Ip67 Connectors Waterproof

Leave a Message

Product Description

Shenzhen Sales Screw Terminal Shape M19 Ip67 Waterproof Connector 2 Pin Plug Male

SW19 Screw tooth series-2 Pin connector

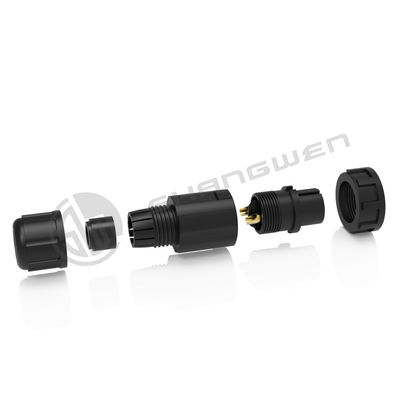

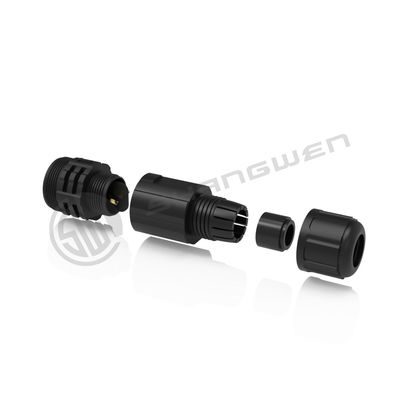

M19 series is an industrial connector, which includes male plug, female plug and male socket.

There are two locking methods:

1. Push-pull self-locking connection

2. Plastic screw connection, both locking design is very reliable.

The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.

The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

Product description

As the name implies, a waterproof connector is an electrical waterproof plug that solders cable wire and connectors together, but in addition to the water resistance of the waterproof plug, ordinary plugs usually include a plug and a socket, which is a major difference. The plug is usually a waterproof plug, which is what we usually call a waterproof male and female plug. They are connected together to form a complete set of waterproof plugs, also known as waterproof connectors, which are two products with different names, such as dedicated bicycles or electric bicycles. Electric scooter induction faucet bike sharing new energy product sensor

Model : SW19-2JL-T (2 pin male plug)

☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67

1.Electrical parameters

Contacts NO.	2 pin
Rated current	20A
Rated voltage	300V AC
Withstand voltage	1500V
Insulation resistance	≥100mΩ
Contact resistance	≤10mΩ

2.Mechanical parameters

Service life	＞1000 times
Power line	Φ4.5mm-Φ11mm
Type of terminals	Screw terminal and soldering terminal available

3.Material and environmental parameters

Shell	High performance engineering plastics
Contacts	Copper alloy
Contact diameter	Φ2.4mm
Protection degree	IP67
Flame-retardant grade	UL94-V0
Temperature range	-40℃~105℃
