250v AC Powercon Connector Female Socket Connector Ip44 For LED Display

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW3MPA
Minimum Order Quantity	2 pieces
Price	$0.90 - $2.00/pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Name	250v AC Powercon Connector	Application	Power
Gender	Female	Industrial Electronics	Accessories
Type	Led Display Connector
Highlight	AC Powercon Connector Female , Powercon Connector Female , Female Socket Connector Ip44

Leave a Message

Product Description

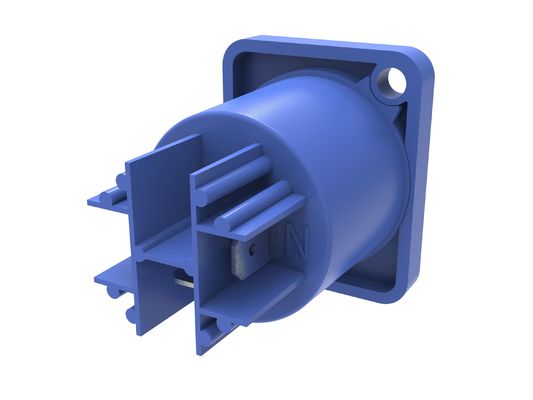

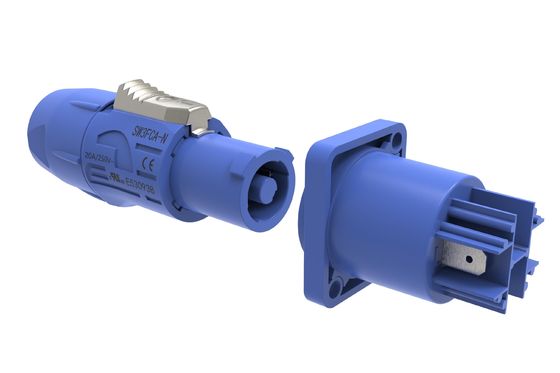

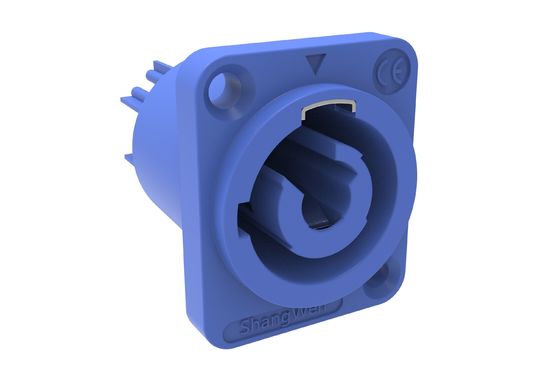

Indoor Ip44 250v Ac Powercon Connector Female Socket Power Connector For Led Display

Model:SW3MPA(indoor use/blue input)

☑Connect reliably

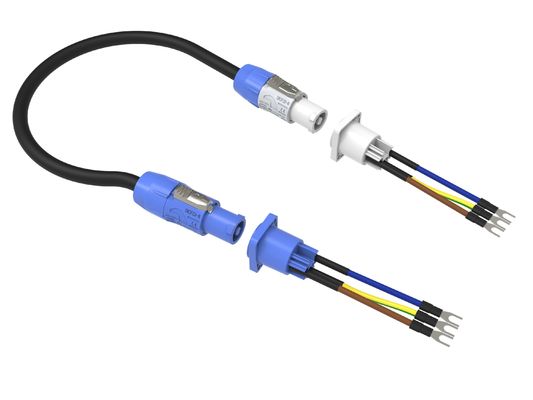

☑Use different color design to distinguish signal input and output, blue input, white output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force

☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
☑Quick, simple locking system

Products Description

Power connector series-female powercon(input port)

This series is widely used in indoor rental LED display power connection.

The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.

The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.

1. Electrical parameters

Contacts NO.	2+PE
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤5mΩ
Dielectric strength	4000V DC
Insulation resistance	＞1000MΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	2.5mm²(8mm - 12mm)
Wire stripping length	7-8mm
Type of teminals	Screw type clamping units solder termination

3. Material and environmental parameters

Shell	PA
Contacts	Cu alloy
Contact surface	Ag
Flame-retardant grade	UL94-V0
Protection grade	IP44
Temperature range	-30°C to +80°C

4. Size reference (unit /mm)

5.Installation reference drawing

Application area

Shangwen electronics has excellent engineering creation team, market operation team, modem manufacturing workshop, strict quality supervision system and fast storage and logistics facilities. Over the years, the products have been widely used in LED display, lighting equipment, engineering machinery equipment and etc.We will continue to develop into a world-renowned brand in the connector industry.

Company Information

The company has set up a connector factory in Ningbo and a finished wiring harness processing factory in Shenzhen. The monthly output of finished wiring harness can reach 500,000 pieces and the monthly output of connector can reach 300,000 sets.

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

3. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
